Parameter Typical Specification
Working Volume 30, 000 L
Gross Volume 33, 000–36, 000 L
Material of Construction (MOC) SS304, SS316, SS316L, or Carbon Steel (application dependent)
Design Pressure Full vacuum to 3–6 bar(g) (customizable)
Design Temperature -10°C to 200°C (higher with special design)

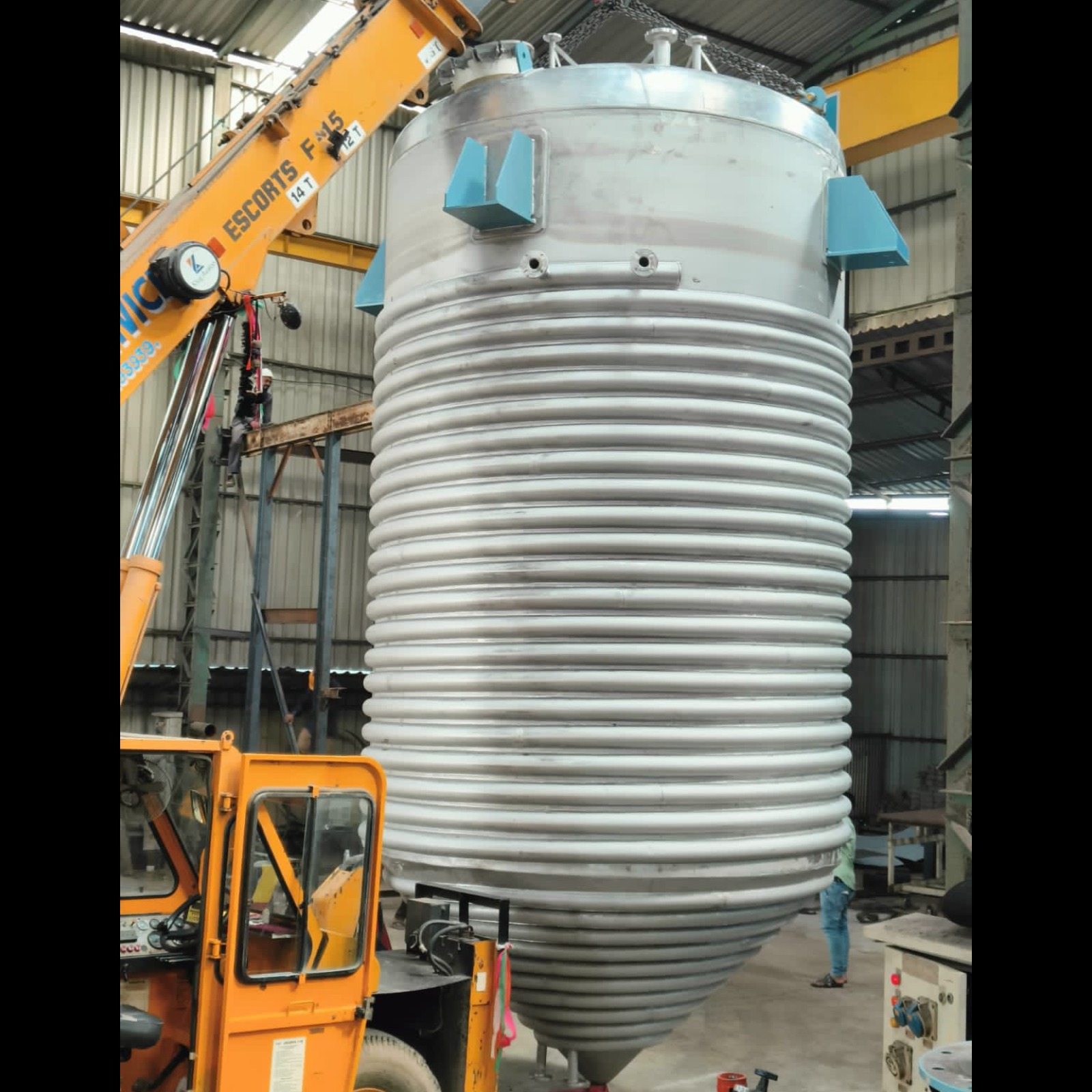

Jacket Type Conventional jacket, limpet coil, or half-pipe coil
Heating/Cooling Media Steam, hot oil, chilled water, glycol
Agitator Type Anchor, paddle, turbine, pitched blade, or hydrofoil
Agitator Speed 20–300 RPM (via VFD)
Motor Rating Typically 15–45 kW, depending on process viscosity
Mechanical Seal Single or double mechanical seal with flushing arrangement
Insulation Mineral wool or PU insulation (50–100 mm) with SS/Al cladding
Nozzles Manway, charging, vent, sampling, CIP, instrumentation, safety valve, drain
Bottom Design Dished, conical, or flat with flush bottom valve
Surface Finish Mirror finish (Ra ≤ 0.8 µm) for pharma; standard finish for chemical service
Instrumentation Temperature sensor (RTD), pressure gauge/transmitter, level indicator, load cells (optional), sight glass
Standards ASME Section VIII, IS 2825, PED, GMP (if pharmaceutical)
Support Skirt support or legs depending on installation
Utilities Steam, cooling water, compressed air, nitrogen blanketing (optional)
Optional Features
Variable Frequency Drive (VFD) for agitator
Baffles for improved mixing
Clean-in-Place (CIP) and Sterilize-in-Place (SIP)
Load cell weighing system
Flameproof motor (ATEX/IECEx) for hazardous areas
PLC/SCADA automation
Nitrogen blanketing system
Rupture disc and pressure safety valve
Typical Dimensions (Approximate)
Internal Diameter: 2.8–3.2 m
Straight Shell Height: 4.5–5.5 m
Overall Height: 6–8 m
Shell Thickness: 8–16 mm (depends on pressure and code)
Jacket Thickness: 4–8 mm
